Digital Relative Humidity sensor with Temperature output and IP67 PTFE Membrane HTU21DF

FOB Reference Price:Get Latest Price
US $0.001-0.01 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
100000 Piece/Pieces per Month
Port:
HK
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
United States
Brand Name:
MEAS / TE
Model Number:
HTU21DF
Usage:
Humidity Sensor
Theory:
OEM applications
Output:
Digital Sensor, I2C
Size:
3 x 3 x 0.9 mm
Voltage Supply:
1.5~3.6V
Humidity Measuren range:
0-100%RH
Temperature Measuren range:
-40~125'C
Packaging & Delivery
Packaging Details
Carton
Delivery Time
Shipped in 7 days after payment





 Digital Relative Humidity sensor with Temperature output and IP67 PTFE Membrane

                                                    Model Number : HTU21DF



SPECIFICATIONS
- DFN type package
- Relative Humidity and Temperature Digital Output, I²C interface
- Fully calibrated
- Lead free sensor, reflow solderable
- Low power consumption
- Fast response time



FEATURES
- Full interchangeability with no calibration required in standard conditions
- Instantaneous desaturation after long periods in saturation phase
- Compatible with automatized assembly processes, including Pb free and reflow processes
- Individual marking for compliance to stringent traceability requirements



APPLICATIONS
- Home Appliance
- Medical
- Printers
- Humidifier



Description

 The HTU21D(F) is a new digital humidity sensor with temperature output by MEAS. Setting new standards in terms of
size and intelligence, it is embedded in a reflow solderable Dual Flat No leads (DFN) package with a small 3 x 3 x 0.9 mm
footprint. This sensor provides calibrated, linearized signals in digital, I²C format.


HTU21D(F) digital humidity sensors are dedicated humidity and temperature plug and play transducers for OEM applications where reliable and accurate measurements are needed. Direct interface with a micro-controller is made possible with the module for humidity and temperature digital outputs. These low power sensors are designed for high volume and cost sensitive applications with tight space constraints.



Every sensor is individually calibrated and tested. Lot identification is printed on the sensor and an electronic identification code is stored on the chip – which can be read out by command. Low battery can be detected and a checksum improves communication reliability. The resolution of these digital humidity sensors can be changed by command (8/12bit up to 12/14bit for RH/T).



With MEAS’ improvements and miniaturization of this sensor, the performance-to-price ratio has been improved – and eventually, any device should benefit from its cutting edge energy saving operation mode.

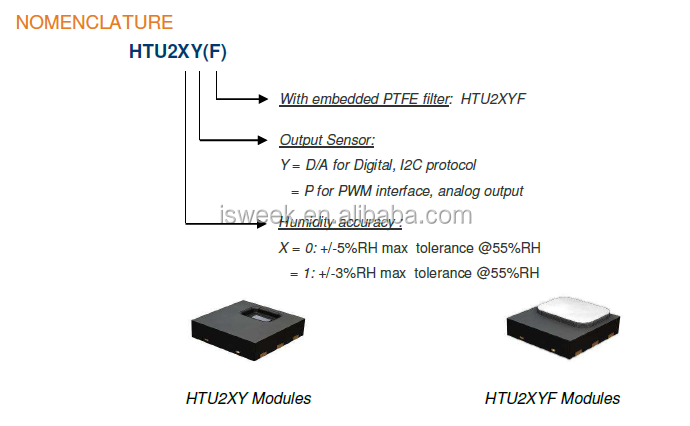

Optional PTFE filter/membrane (F) protects HTU21D digital humidity sensors against dust and water immersion, as well as against contamination by particles. PTFE filter/membranes preserve a high response time. The white PTFE filter/membrane is directly stuck on the sensor housing. This membrane is allowing an IP67 compliant protection.
