Galvanic Dissolved Oxygen Sensor for Water Quality Control 0-20 mg/L DO1200

FOB Reference Price:Get Latest Price
US $0.001-0.01 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
HK
Report Suspicious Activity

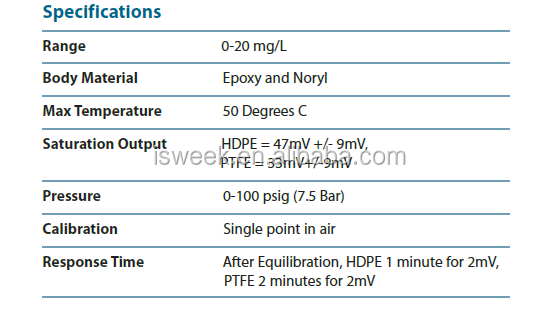

Overview
Quick Details
Place of Origin:
United States
Brand Name:
Sen
Model Number:
DO1200
Usage:
Dissolved Oxygen Sensor
Theory:
Galvanic type
Output:
Analog Sensor
Range:
0-20 mg/L
Body Material:
Epoxy and Noryl
Max Temperature:
50 Degrees C
Saturation Output:
HDPE = 47mV +/- 9mV, PTFE = 33mV+/-9mV
Pressure:
0-100 psig (7.5 Bar)
Calibration:
Single point in air
Response Time:
After Equilibration, HDPE 1 minute for 2mV, PTFE 2 minutes for 2mV
Packaging & Delivery
Packaging Details
Carton
Delivery Time
7 working days

               Galvanic Dissolved Oxygen Sensor for  Water Quality Control 0-20 mg/L

                                                            Model Number : DO1200



Features

Reliable galvanic sensing technology
Compact 12mm design
For portable, laboratory or on-line use
Optional integral ATC element
Easy to use pre-membraned replacement caps



Description

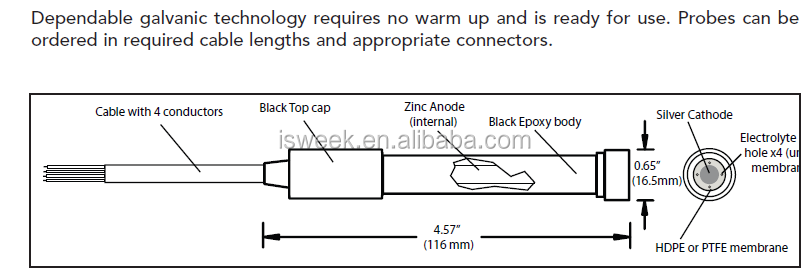

The DO1200 and DO1200TC feature dependable galvanic technology. No warm up period is required. Sensors are supplied with fast responding HDPE membrane caps for portable or lab use. Optional PTFE membrane caps are available for on-line or heavy UV exposure applications. Fill solution is replaceable when required.

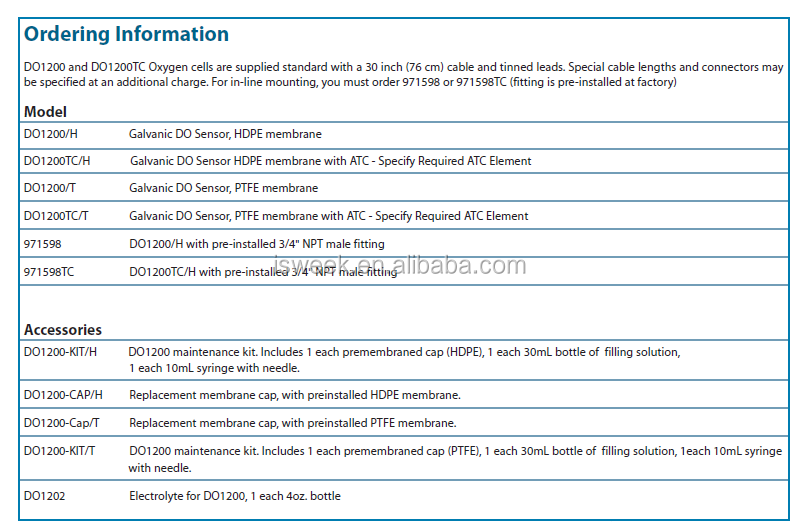

The DO1200 is supplied without internal temperature compensation. The DO1200TC can be supplied with a variety of user defined ATC elements. Standard cable length is 2.5 feet with a tinned lead termination. Longer cable lengths and connectors are available for an additional charge. For on-line use, our FC75P 3/4 inch in-line fitting may be ordered to provide for mounting into 3/4 inch FNPT threaded tees.
