Electrochemical type Formaldehyde Gas Sensor Module CH2O Sensor for Air Quality Detection ZE08-CH20

FOB Reference Price:Get Latest Price
US $0.001-0.01 / Piece | 1 Piece/Pieces (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
HK
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
Win
Model Number:
ZE08-CH20
Usage:
Gas Sensor
Theory:
Electrochemical type
Output:
Analog Sensor, UART, analog voltage signal, PWM
Range:
0-5mg / m
Resolution:
≤0.01ppm
Working temperature:
0'C ~ 50'C
Operating voltage:
3.7V-9V
Life:
2 years (in air)
Packaging & Delivery
Packaging Details
Carton
Delivery Time
7 working days

  Electrochemical Formaldehyde Sensor Module CH2O Sensor for Air Quality Detection                                                                     Model Number :ZE08-CH20



Features:
High sensitivity, high-resolution
Low power consumption
Provide a variety of output UART, analog voltage signal, PWM waveforms
High stability, excellent anti-jamming capability
Temperature compensation, excellent linear output
Long life

Main Applications:
Portable instrumentation, air quality monitoring equipment, air purifier,

fresh air ventilation system, air conditioning, intelligent home devices and other places.

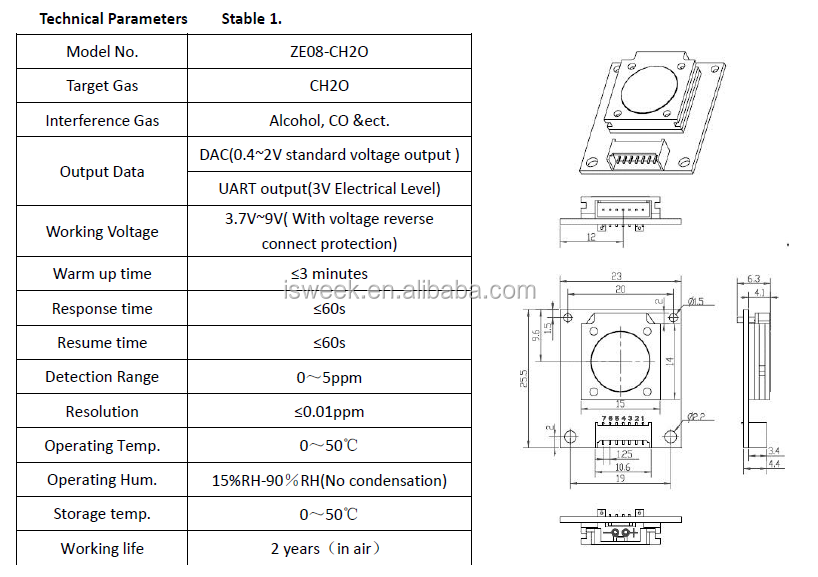

Product parameters:
Detection of gas: formaldehyde
Interfering gases: alcohol, carbon monoxide and other gases
Output data:
1: DAC (0.4-2V standard voltage signal)
2: UART output (3V level)
Operating voltage: 3.7V-9V (with reverse voltage protection)
Warm-up time: ≤3 minutes
Response time: ≤60 seconds
Recovery time: ≤60 seconds
Range: 0-5mg / m
Resolution: ≤0.01ppm
Working temperature: 0 oC ~ 50 oC
Humidity: 15% RH-90% RH (non-condensing)
Storage temperature: 0 ~ 50 oC
Life: 2 years (in air)

Note:
Sensors to avoid exposure to organic solvents (including silicone and other adhesives), coatings, pharmaceuticals, oil and high concentrations of gas;
Not excessive shock or vibration;
Initial power use must warm up for 5 minutes;
Do not use this module is applied to a system involving the personal safety;
Do not use the module installed in the strong convective air environment;
Do not use this module for a long time in a high concentration of organic gases.
